Transmission Line Stringing Equipment Cable Hydraulic Tension Machine

Name: Transmission Line Stringing Equipment Cable Hydraulic Tension Machine
Brand: HANYU
Price: 74 USD

China Transmission Line Stringing Equipment Cable Hydraulic Tension Machine wholesale

Brand Name : HANYU

Model Number : TY1X120III

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD74,500.00-79,000.00/Set

Payment Terms : L/C, T/T

Supply Ability : 10Sets/Month

Delivery Time : 15-35days

Packaging Details : Container

Type : Cable Hydraulic Tension Machine

Cable Hydraulic Tension Machine : 2.5km/h

Pull at max speed : 1x50kN

Total weight : 8500kg

Bull-wheel diameter : 1500mm

Overall dimension (length*width*height) : 5200×2300×2700mm

Contact Now

Transmission Line Stringing Equipment Cable Hydraulic Tension Machine

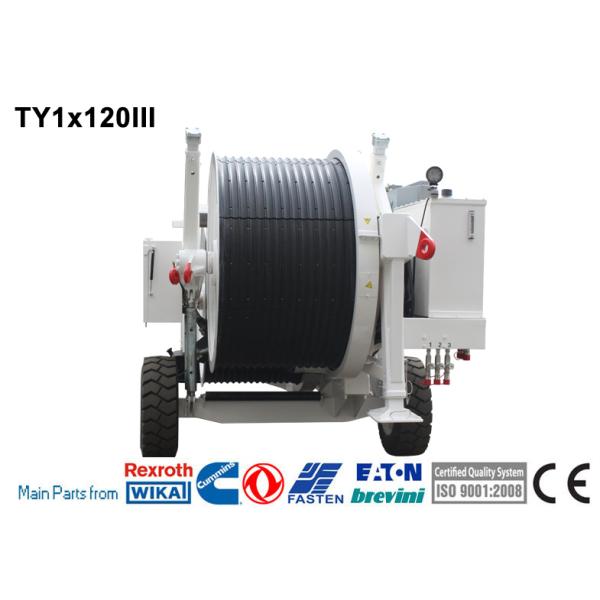

TY1X120III Hydraulic Tensioner

The machine allows for the tension stringing of triple-bundle conductor of 630mm² and below in mountainous and hilly areas, of triple-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;

Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Performance
Max intermittent tension	1x130kN
Max continuous tension	1x120kN
Speed at max tension	2.5km/h
Max speed	5km/h
Pull at max speed	1x50kN
Max reverse pulling force	1x90kN
Characteristics
Bull-wheel diameter	1500mm
Max conductor diameter	40mm
Groove number	12
Total weight	8500kg
Overall dimension (lengthwidthheight)	5200×2300×2700mm
Main configuration
Engine	Cummins
Hydraulic pump	German Rexroth/Dnish Danfoss
Main motor	German Rexroth/French Leduc
Speed reducer	German Rexroth / Italy Bonfiglioli
Main hydraulic valves	USA Sun / Italy ATOS
Engine
Diesel	77kw(103hp)
Cooling system	water
Electrical system	24V
Hydraulic Transmission
The machine is provided with tension presetting system.
The machine can realize step less speed.
Configuration
Control instruments for hydraulic system and diesel engine
Hydraulic oil cooling system
Hydraulic front stabilizer
Grounding connection point
Hydraulic dynamometers
Hydraulic power pack to control up to 3 separated drum stands with hydraulic motor.
Digital speed meters
Digital meter counters
Additional Devices
Air brake system for the trailer(extra charge)
Digital speed and meter counter
Lighting system for the trailer
3 hydraulic conductor clamps for drum change operations (extra charge)
